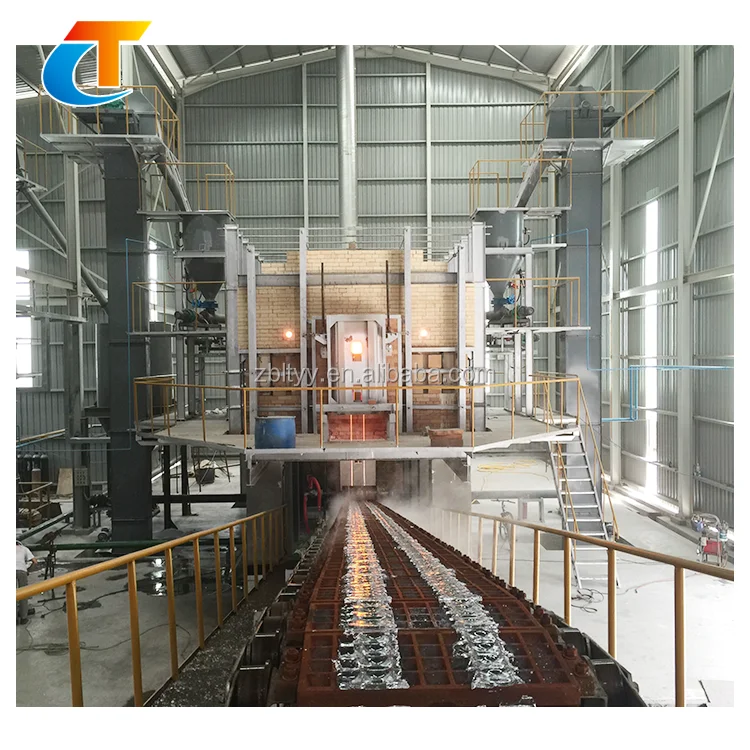

Horse-shoe Flame Glass Furnace and Recuperative Furnace

FOB Reference Price:Get Latest Price
$300,000.00 - $5,000,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
LT-MTL-8-80
Max. Glass Size:
Custom
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass furnace
Production Capacity:
1-160ton/24 hours
Power(W):
5k
After-sales Service Provided:
Online support
Applicable Industries:
Construction works
Place of Origin:
Shandong, China
Brand Name:
LT
Applied field:
glass
Craft:
furnace
Shape of furnace:
Regenerative horseshoe flame furnace,recuperative tank furnace
Fuel:
Natural gas, coke gas,mixed coal gas,heavy oil, coke tar, coal
Conveying methods of materials:
Belting conveying, screw conveying, pneumatic conveying
Temperature range:
1300-1580(℃)
material:
Refracotry material and steel
Production capacity:
0.41-5.41(t/h)
weight:
280-2100(t)
Supply Ability
Supply Ability:
1 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export packing
Port
Qingdao
Product Description
Furnaces type
Horse-shoe Flame Glass Furnace and Recuperative Furnace
Melting capacity
5-110 tons per 24 hours, normal melting rate: 1.4-2.0
Fuel type
Natural gas, coke gas, coal gas, heavy oil or light diesel and so on
Design temperature
1350-1600℃
Specification
Valid melting area is 4-66m2, part enhanced insulation and full thermal insulation
Regenerator
Arranged in Siemens or octagonal cylindrical brick checker type, single or double route
Cooling method
Direct water quenching or chain plate molding machine
Advantages
(1) More scientific and energy saving, more economical and efficient,
(2) Small covering area, and U-shape flame will lead to high thermal efficiency;
(3) Deep melting tank, high flame space, and large aspect ratio, higher melting storage, pre-combustion chamber set will lead to perfect heating performance;
(4) Offset hole fluid flow mouth and a liftable flow mouth makes it more convenient and flexible to change the formula.

-
PLC automatic control system is adopted to realize the automatic reversal of primary air, secondary air and gas
-
The most advanced technology of hermetic fixed amount continuous charging and continuous automatic excavating are applied
Application of sodium silicate
Silica-alumina catalyst, silica gel, silica hydrated, sodium metasilicate, detergent, dyeing and bleaching, casting materials, soil curing agent, refractory, corrugated board, waterproofing, silicon fertilizer, desiccant, carton binder etc

Automatic control system

Our Company
Certifications
Our advantages
Related Products




Packing & Delivery
Our Service

Material:
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.

Drawing:
Please make sure the drawing is clear with all of your technical requests so that we can quote asap.
Customized designs, sizes and logos are acceptable.

Focus on Details:
No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.

High Quality:
Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.

Professional Services:
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
In your inquiry, please provide as detailed information as you can for our evaluation.
