Large sodium silicate glass industrial furnace

FOB Reference Price:Get Latest Price
$30,000.00 - $5,000,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LT-MLT-80-2
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Usage:
Melting Furnace
Type:
regenerative furnace
Brand Name:
LONGTAI
Voltage:
Requirement
Dimension(L*W*H):
Custmized
Certification:
ISO9001:2008
Weight (T):
2100 T
Power (kW):
5
After Warranty Service:
Online support
Key Selling Points:
Energy saving
Local Service Location:
None
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
After-sales Service Provided:
Engineers available to service machinery overseas
Furnaces type:
Sodium silicate kiln
Specification:
Valid melting area is 4-66m2,
Melting capacity:
5-110 tons per 24 hours, normal melting rate: 1.4-2.0
Fuel:
Natural gas,coal gas,coal,oil,coke gas
Shape:
Horseshoe flame furnace
Design temperature:
1350-1600℃.
Material:
Refractory material and metal material
Capacity:
5.42(t/h)
Weight:
2100(t)
Warranty:
12 Months
Supply Ability
Supply Ability:
3 Set/Sets per Year
Packaging & Delivery
Packaging Details
As customer's request
Port
Qingdao
Product Description

Large sodium silicate glass industrial furnace


Furnaces type
High efficiency energy saving sodium silicate kiln production line
Melting capacity
5-110 tons per 24 hours, normal melting rate: 1.4-2.0
Fuel type
Natural gas, coke gas, coal gas, heavy oil or light diesel and so on
Design temperature
1350-1600℃
Specification
Valid melting area is 4-66m2, part enhanced insulation and full thermal insulation
Regenerator
Arranged in Siemens or octagonal cylindrical brick checker type, single or double route
Cooling method

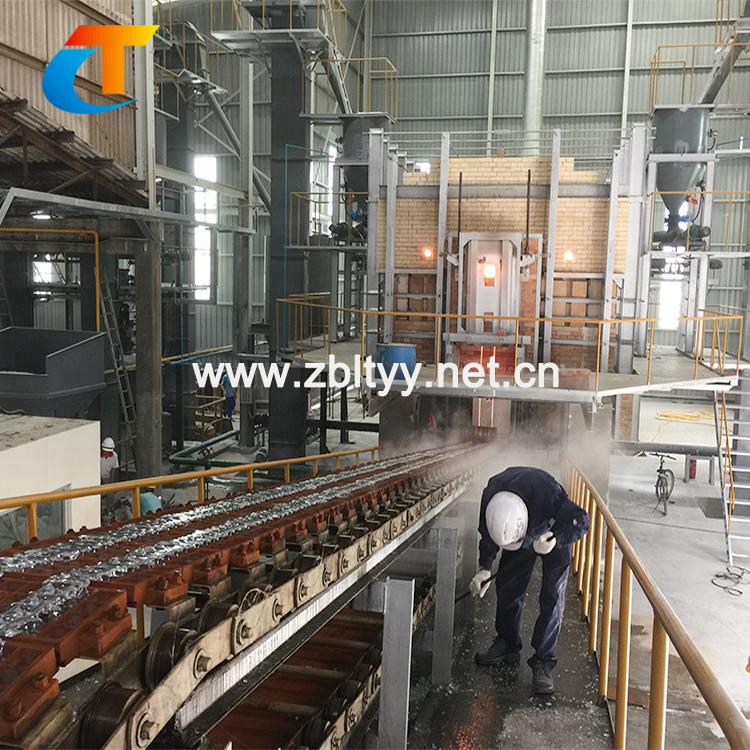

Direct water quenching or chain plate molding machine
Advantages
(1) More scientific and energy saving, more economical and efficient,
(2) Small covering area, and U-shape flame will lead to high thermal efficiency;
(3) Deep melting tank, high flame space, and large aspect ratio, higher melting storage, pre-combustion chamber set will lead to perfect heating performance;
(4) Offset hole fluid flow mouth and a liftable flow mouth makes it more convenient and flexible to change the formula.

-
PLC automatic control system is adopted to realize the automatic reversal of primary air, secondary air and gas
-
The most advanced technology of hermetic fixed amount continuous charging and continuous automatic excavating are applied
Application of sodium silicate
Silica-alumina catalyst, silica gel, silica hydrated, sodium metasilicate, detergent, dyeing and bleaching, casting materials, soil curing agent, refractory, corrugated board, waterproofing, silicon fertilizer, desiccant, carton binder etc

Roll forming

Automatic control system
