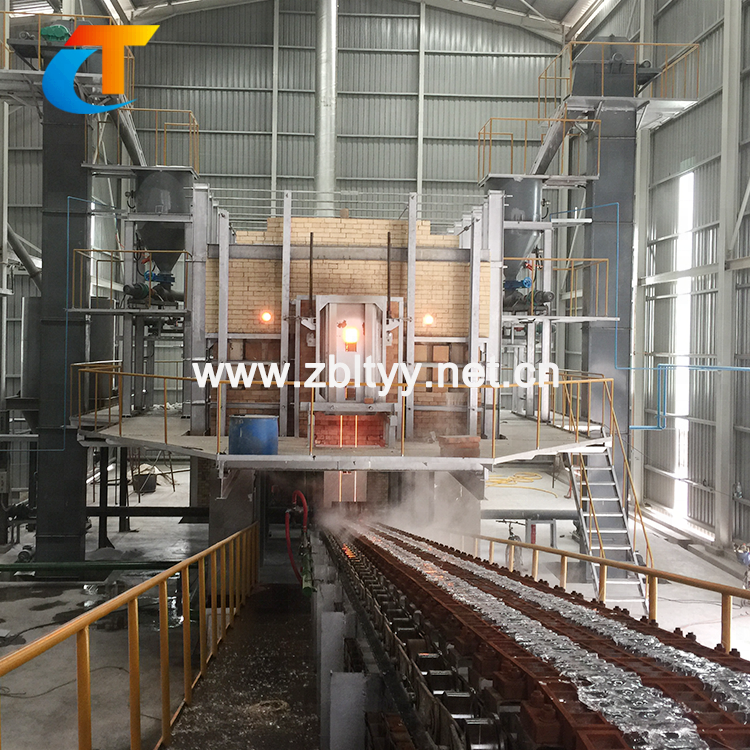

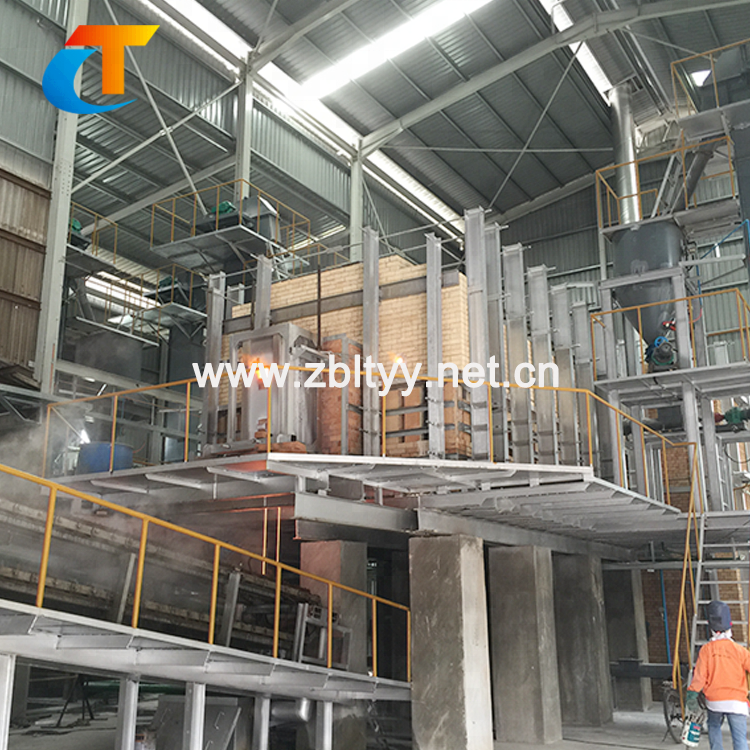

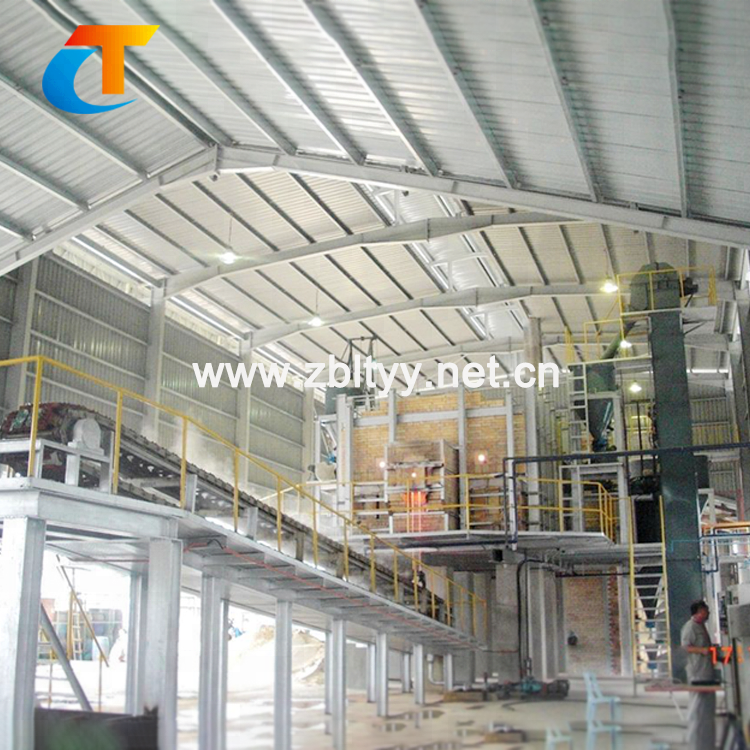

Thermal insulation construction sodium silicate kiln
Furnaces type | High efficiency energy saving sodium silicate kiln production line | ||||
Melting capacity | 5-110 tons per 24 hours, normal melting rate: 1.4-2.0 | ||||
Fuel type | Natural gas, coke gas, coal gas, heavy oil or light diesel and so on | ||||
Design temperature | 1350-1600℃ | ||||
Specification | Valid melting area is 4-66m2, part enhanced insulation and full thermal insulation | ||||
Regenerator | Arranged in Siemens or octagonal cylindrical brick checker type, single or double route | ||||
Cooling method | Direct water quenching or chain plate molding machine | ||||
Advantages | (1) More scientific and energy saving, more economical and efficient, (2) Small covering area, and U-shape flame will lead to high thermal efficiency; (3) Deep melting tank, high flame space, and large aspect ratio, higher melting storage, pre-combustion chamber set will lead to perfect heating performance; (4) Offset hole fluid flow mouth and a liftable flow mouth makes it more convenient and flexible to change the formula. | ||||
- | PLC automatic control system is adopted to realize the automatic reversal of primary air, secondary air and gas | ||||
- | The most advanced technology of hermetic fixed amount continuous charging and continuous automatic excavating are applied | ||||
Application of sodium silicate | Silica-alumina catalyst, silica gel, silica hydrated, sodium metasilicate, detergent, dyeing and bleaching, casting materials, soil curing agent, refractory, corrugated board, waterproofing, silicon fertilizer, desiccant, carton binder etc | ||||
Roll forming
Our team
Automatic control system
Material:
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
Drawing:
Please make sure the drawing is clear with all of your technical requests so that we can quote asap.
Customized designs, sizes and logos are acceptable.
Focus on Details:
No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.
High Quality:
Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.
Professional Services:
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
In your inquiry, please provide as detailed information as you can for our evaluation.
